商品編號：C2420
C2420 網路分析儀-VNA

CMT C2420 Vector Network Analyzer Direct Receiver Access

  • Frequency range: 100 kHz to 20 GHz
  • Measured parameters: S11, S12, S21, S22..........S33......S44
  • Sweep types: Linear frequency, log frequency, segment, power sweep
  • Dynamic range: >133 dB (10 Hz IF bandwidth) typ.
  • Measurement speed: 12 µs, min typ.
  • Output power adjustment range: -60 dBm to +10 dBm
  • Up to 500,001 measurement points per sweep

Datasheets

20 GHz Cobalt VNA Data Sheet  |  Extended Specification Sheet

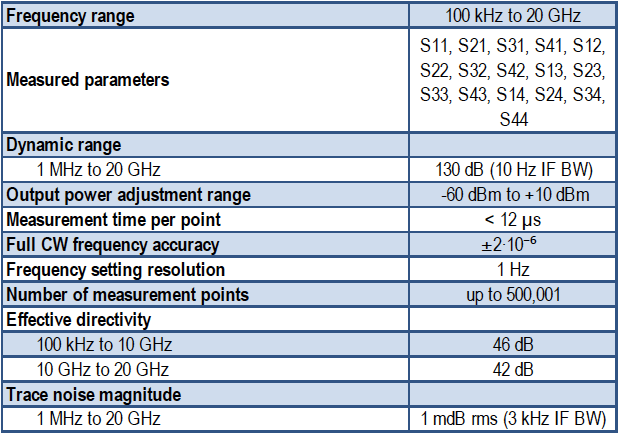

規格
4-Port 20 GHz Analyzer, Direct Receiver Access

20GHz向量網路分析儀(Vector Network Analyzer), C2420

  • 頻率範圍：100 kHz 至 20 GHz
  • 測量參數：S11, S12, S21, S22..........S33......S44
  • 掃描類型：線性頻率、對數頻率、分段、功率掃描
  • 動態範圍：>133 dB（10 Hz IF 帶寬）典型值。
  • 測量速度：12 µs，最小典型值。
  • 輸出功率調節範圍：-60 dBm 至 +10 dBm
  • 每次掃描最多 500,001 個測量點
